KM9888H
HP-PRO PLUS 320MUV
A 3300mm UV roll to roll machine with six KM9888H heads and UV LED curing, configurable as CMYK plus white or CMYK plus light cyan and light magenta.
- Print width
- 3300mm
- Printheads
- 6
- Peak output
- 57 m²/h
- Warranty
- 1 year
Output by pass mode
Every configuration the factory publishes for this machine. More passes means finer detail and slower output, so the mode you run every day decides your real capacity.
KM-9888H, 6 head
| Pass | Mode | Resolution | Output | Relative output |
|---|---|---|---|---|
| 4pass | Front print | 480×1200dpi | 57m²/h | |
| 4pass | Colour, white, colour | 480×1200dpi | 19m²/h | |
| 6pass | Reverse print | 480×1800dpi | 38m²/h |

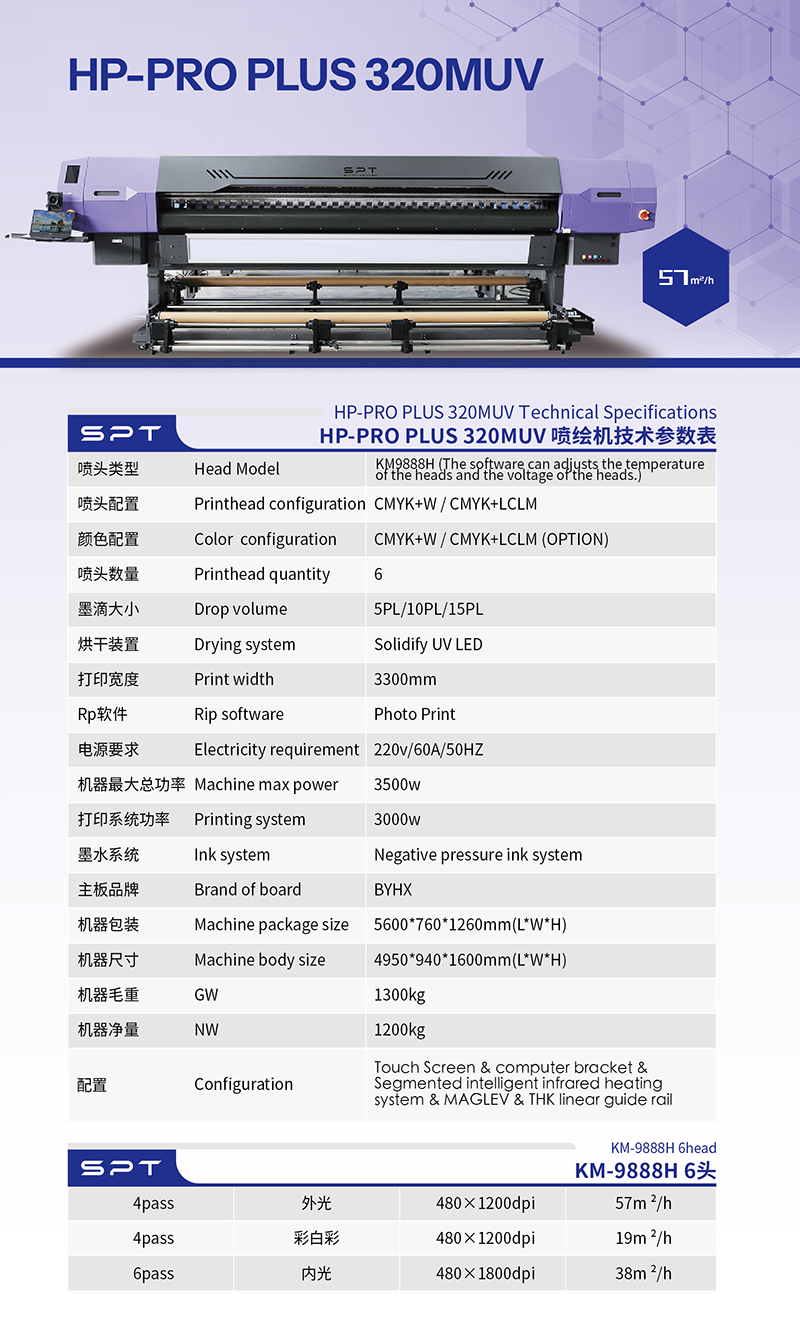

Full specifications
Printhead and output
| Head model | KM9888H (The software can adjusts the temperature of the heads and the voltage of the heads.) |
|---|---|
| Printhead configuration | CMYK+W / CMYK+LCLM |
| Color configuration | CMYK+W / CMYK+LCLM (OPTION) |
| Printhead quantity | 6 |
| Drop volume | 5PL/10PL/15PL |
| Print width | 3300mm |
| Rip software | Photo Print |
| Ink system | Negative pressure ink system |
Power and curing
| Curing system | Solidify UV LED |
|---|---|
| Electricity requirement | 220v/60A/50HZ |
| Machine max power | 3500w |
| Printing system | 3000w |
Machine and build
| Brand of board | BYHX |
|---|---|
| Machine package size | 5600*760*1260mm(L*W*H) |
| Machine body size | 4950*940*1600mm(L*W*H) |
| Gross weight | 1300kg |
| Net weight | 1200kg |
| Configuration | Touch Screen & computer bracket & Segmented intelligent infrared heating system & MAGLEV & THK linear guide rail |
Tell us what you print, we will tell you which machine fits.
Send your daily output, media type and floor width. You get a configuration, a delivery timeline and a price.
