KM512i-30PL
T4-320
The four-head entry point to the 3300mm range at 140 m²/h, using double row fan drying and an 800kg net chassis.
- Print width
- 3300mm
- Printheads
- 4
- Peak output
- 140 m²/h
- Warranty
- 1 year
Output by pass mode
Every configuration the factory publishes for this machine. More passes means finer detail and slower output, so the mode you run every day decides your real capacity.
KM512i-30PL, 4 head
| Pass | Resolution | Output | Relative output |
|---|---|---|---|
| 2pass | 360×360dpi | 140m²/h | |
| 3pass | 360×540dpi | 90m²/h | |
| 2pass | 480×360dpi | 120m²/h | |
| 3pass | 480×540dpi | 70m²/h | |
| 4pass | 480×720dpi | 55m²/h |

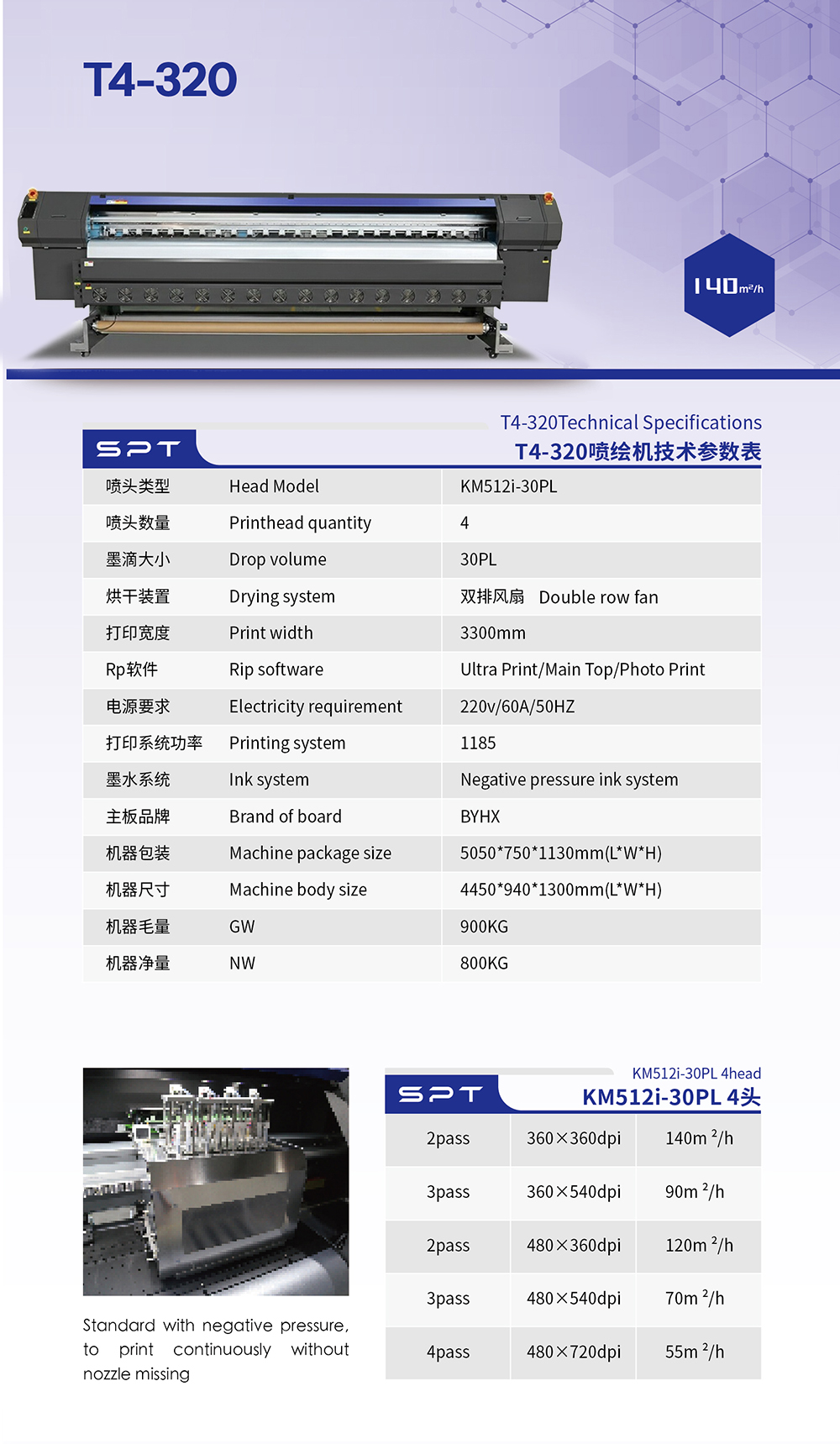

Full specifications
Printhead and output
| Head model | KM512i-30PL |
|---|---|
| Printhead quantity | 4 |
| Drop volume | 30PL |
| Print width | 3300mm |
| Rip software | Ultra Print/Main Top/Photo Print |
| Ink system | Negative pressure ink system |
Power and heating
| Drying system | Double row fan |
|---|---|
| Electricity requirement | 220v/60A/50HZ |
| Printing system | 1185 |
Machine and build
| Brand of board | BYHX |
|---|---|
| Machine package size | 5050*750*1130mm(L*W*H) |
| Machine body size | 4450*940*1300mm(L*W*H) |
| Gross weight | 900KG |
| Net weight | 800KG |
Closest alternatives
Tell us what you print, we will tell you which machine fits.
Send your daily output, media type and floor width. You get a configuration, a delivery timeline and a price.
