KM9888H
HP-PRO 320
Four KM9888H heads with selectable 5PL, 10PL and 15PL drop sizes, reaching 267 m²/h at 400x600 dpi. The high resolution option in the 3300mm class.
- Print width
- 3300mm
- Printheads
- 4
- Peak output
- 267 m²/h
- Warranty
- 1 year
Output by pass mode
Every configuration the factory publishes for this machine. More passes means finer detail and slower output, so the mode you run every day decides your real capacity.
KM-9888H, 4 head
| Pass | Resolution | Output | Relative output |
|---|---|---|---|
| 2pass | 400×600dpi | 267m²/h | |
| 3pass | 400×900dpi | 163m²/h | |
| 4pass | 400×1200dpi | 122m²/h |

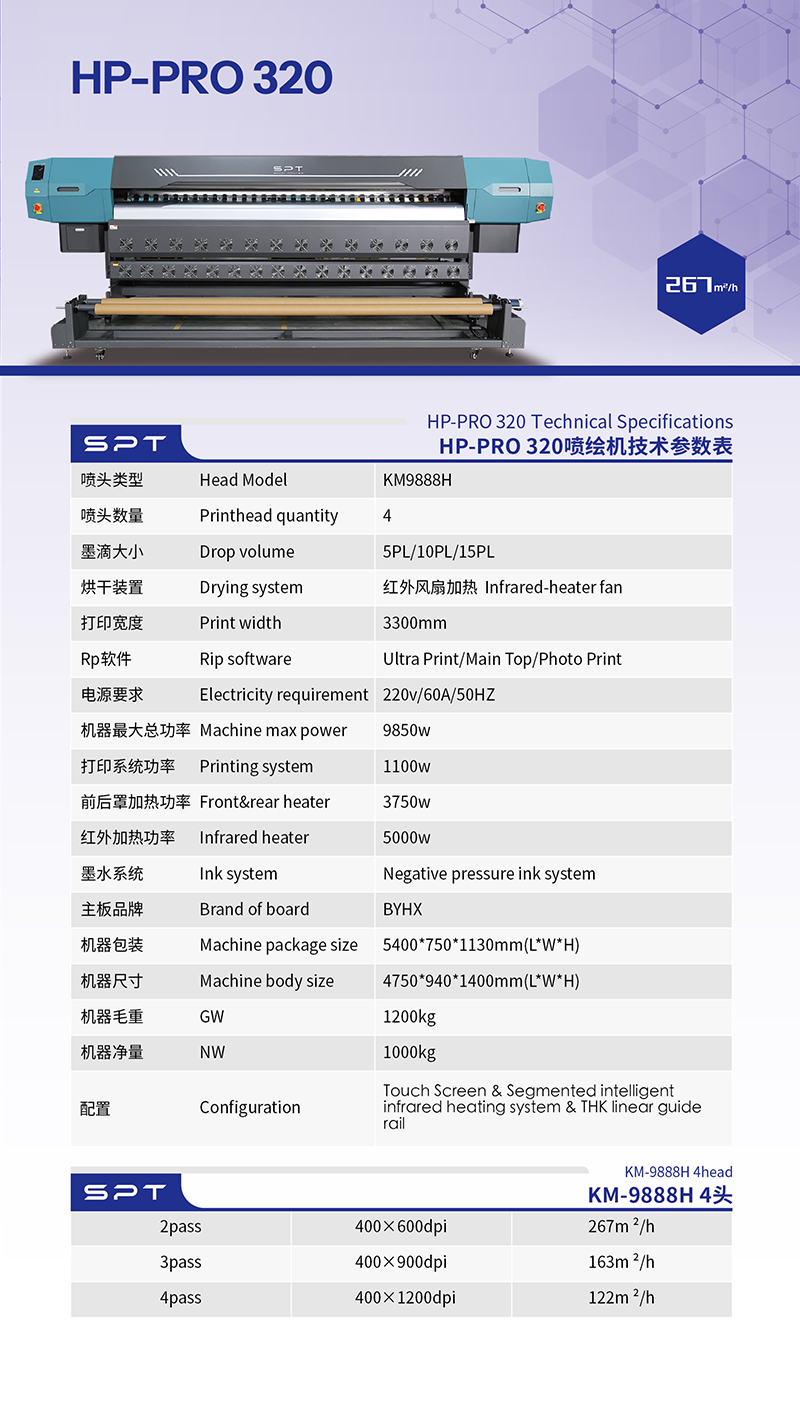

Full specifications
Printhead and output
| Head model | KM9888H |
|---|---|
| Printhead quantity | 4 |
| Drop volume | 5PL/10PL/15PL |
| Print width | 3300mm |
| Rip software | Ultra Print/Main Top/Photo Print |
| Ink system | Negative pressure ink system |
Power and heating
| Drying system | Infrared-heater fan |
|---|---|
| Electricity requirement | 220v/60A/50HZ |
| Machine max power | 9850w |
| Printing system | 1100w |
| Front and rear heater | 3750w |
| Infrared heater | 5000w |
Machine and build
| Brand of board | BYHX |
|---|---|
| Machine package size | 5400*750*1130mm(L*W*H) |
| Machine body size | 4750*940*1400mm(L*W*H) |
| Gross weight | 1200kg |
| Net weight | 1000kg |
| Configuration | Touch Screen & Segmented intelligent infrared heating system & THK linear guide rail |
