KM512i-30PL / KM-HS1000/6988H

T8-PRO PLUS 320 Li (M)

A 3300mm machine offered with either printhead family, so the same chassis covers 600 m²/h volume work and 280 m²/h quality work.

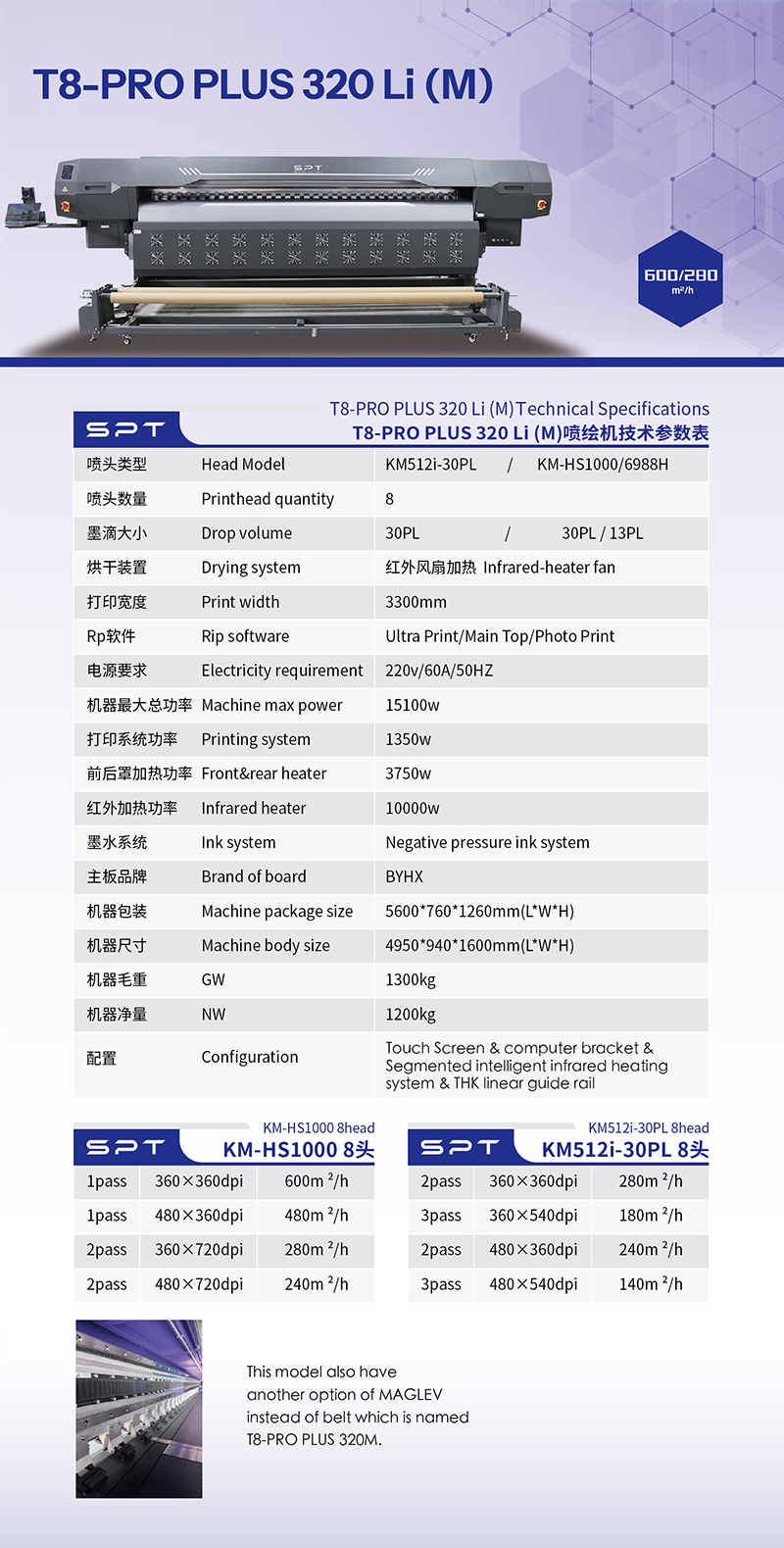

Get a quote Factory spec sheet

T8-PRO PLUS 320 Li (M) wide-format printer, front view

Print width: 3300mm
Printheads: 8
Peak output: 600/280 m²/h
Warranty: 1 year

Output by pass mode

Every configuration the factory publishes for this machine. More passes means finer detail and slower output, so the mode you run every day decides your real capacity.

KM-HS1000, 8 head

Print speed by pass mode for KM-HS1000, 8 head
Pass	Resolution	Output
1pass	360×360dpi	600m²/h
1pass	480×360dpi	480m²/h
2pass	360×720dpi	280m²/h
2pass	480×720dpi	240m²/h

KM512i-30PL, 8 head

Print speed by pass mode for KM512i-30PL, 8 head
Pass	Resolution	Output
2pass	360×360dpi	280m²/h
3pass	360×540dpi	180m²/h
2pass	480×360dpi	240m²/h
3pass	480×540dpi	140m²/h

Full specifications

Printhead and output

Printhead and output specifications
Head model	KM512i-30PL / KM-HS1000/6988H
Printhead quantity	8
Drop volume	30PL / 30PL / 13PL
Print width	3300mm
Rip software	Ultra Print/Main Top/Photo Print
Ink system	Negative pressure ink system

Power and heating

Power and heating specifications
Drying system	Infrared-heater fan
Electricity requirement	220v/60A/50HZ
Machine max power	15100w
Printing system	1350w
Front and rear heater	3750w
Infrared heater	10000w

Machine and build

Machine and build specifications
Brand of board	BYHX
Machine package size	56007601260mm(LWH)
Machine body size	49509401600mm(LWH)
Gross weight	1300kg
Net weight	1200kg
Configuration	Touch Screen & computer bracket & Segmented intelligent infrared heating system & THK linear guide rail

This model is also available with MAGLEV instead of a belt drive, in which case it is designated T8-PRO PLUS 320M.
